To provide customers with global, one-stop intelligent hardware solutions, mainly involving the trinity of hardware, cloud services and software development, forming a closed loop of intelligent customized services, but also according to customer needs, to provide customized services.
Committed to becoming a leading IoT intelligent connection overall solution provider, enabling customers to create more intelligent convenience for customers in more and more electronic paper use scenarios, willing to cooperate with customers at home and abroad to create efficient iot scenarios!

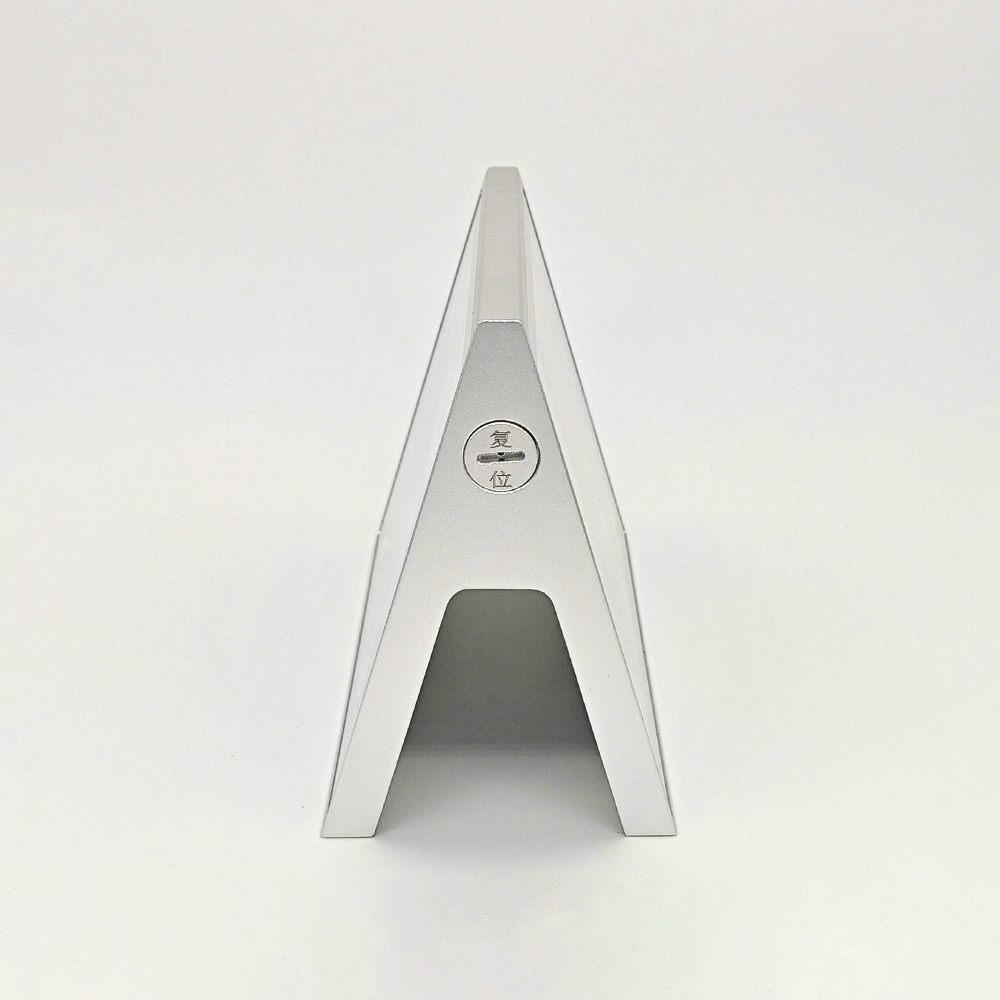

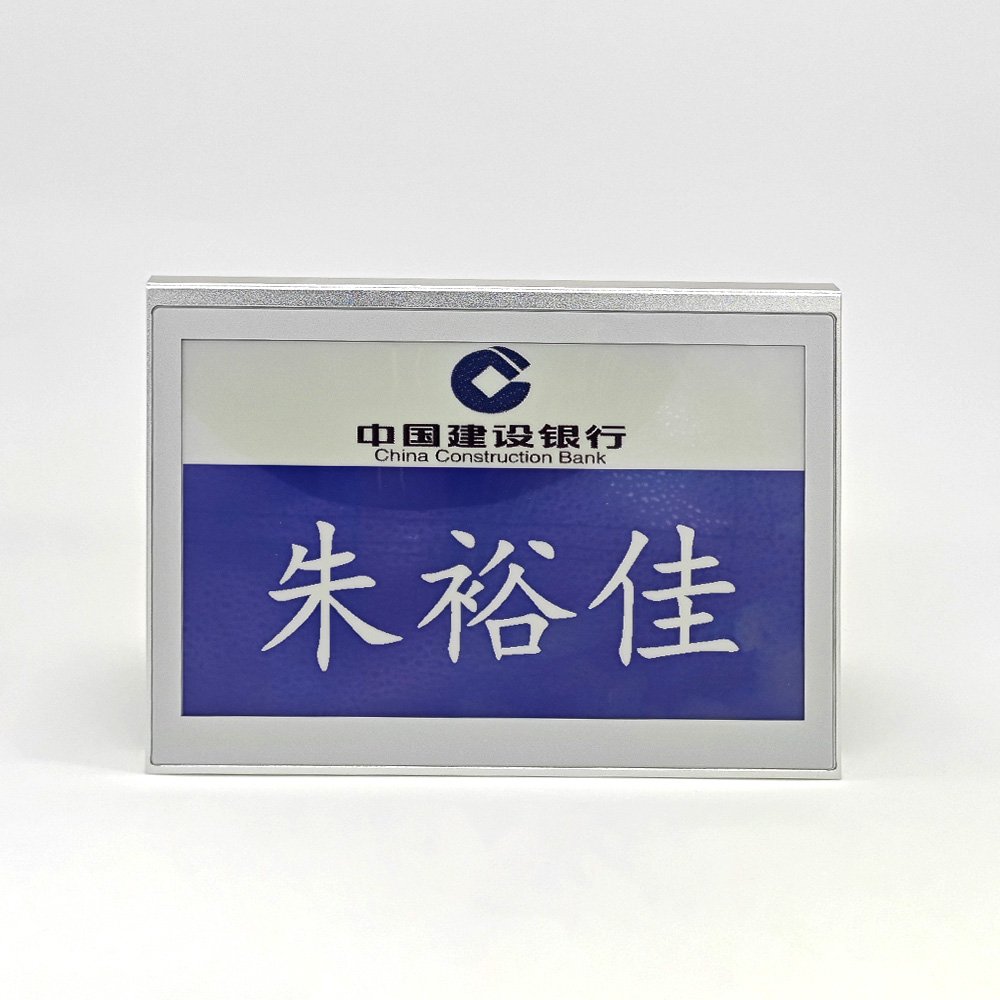

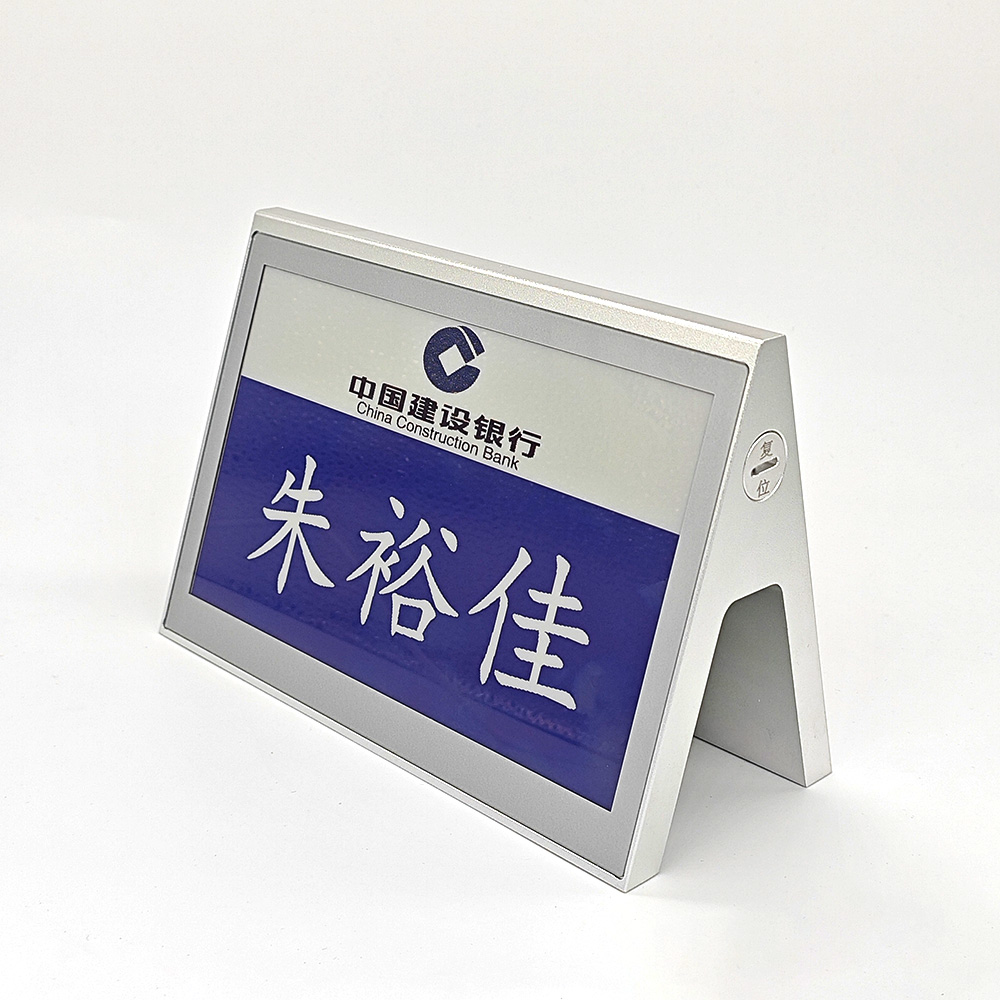

All aluminum alloy body design, double side 7.5 inch water screen design, according to the glass panel, anti-reflection treatment, high-end atmosphere and high grade.
Screen: 7.5 "double-sided (EPD)
: Vertical double-sided horizontal screen display, base body integrated;
: 800*480px
: Black and white red yellow orange green blue 2 gray scale (seven colors)
: Bistable E ink screen
Cate:Smart table
Keywords:
Product overview | All aluminum alloy body design, double side 7.5 inch water screen design, according to the glass panel, anti-reflection treatment, high-end atmosphere and high grade. |
Screen | 7.5 "Double-sided (EPD) |
structure | Vertical double-sided horizontal screen display, base body one |
Resolution | 800*480px |
Display color | Black and white Red Yellow Orange Green Blue 2 gray scale (seven colors) |
Display type | Bistable e-ink screen |
Table material | Metal material |
Visual area | 160.55mm * 95.33mm |
direction | landscape |
Visual Angle | Nearly 180 degrees |
Product size | 177.0mm x 80.0mm x 125.0mm |
Bluetooth version | Bluetooth BT5.0/BLE |
Operating temperature | 0℃ to 50℃ |
Storage temperature | -25℃ ~ 60℃ |
Power dissipation | The average working current is 1.2ma, the average standby current is 0.04ma |
Power supply mode | Dry battery power supply |
Battery life | Refresh 4/5 times a day on average for a year |
Network protocol | TCP/IP protocol stack |
security | WEP/WPA-PSK/WPA2-PSK |
Communication mode 1 | Bluetooth +NFC communication mode (mobile phone batch or single download, single download or modification can be specified through NFC) |
Communication mode 2 | Communication mode of computer base station (independent networking of computer base station, no need for external network, batch modification operation through computer) |
Communication mode 3 | ~ |
Server system | Windows 7, linux |
Client operating system | ~ |
