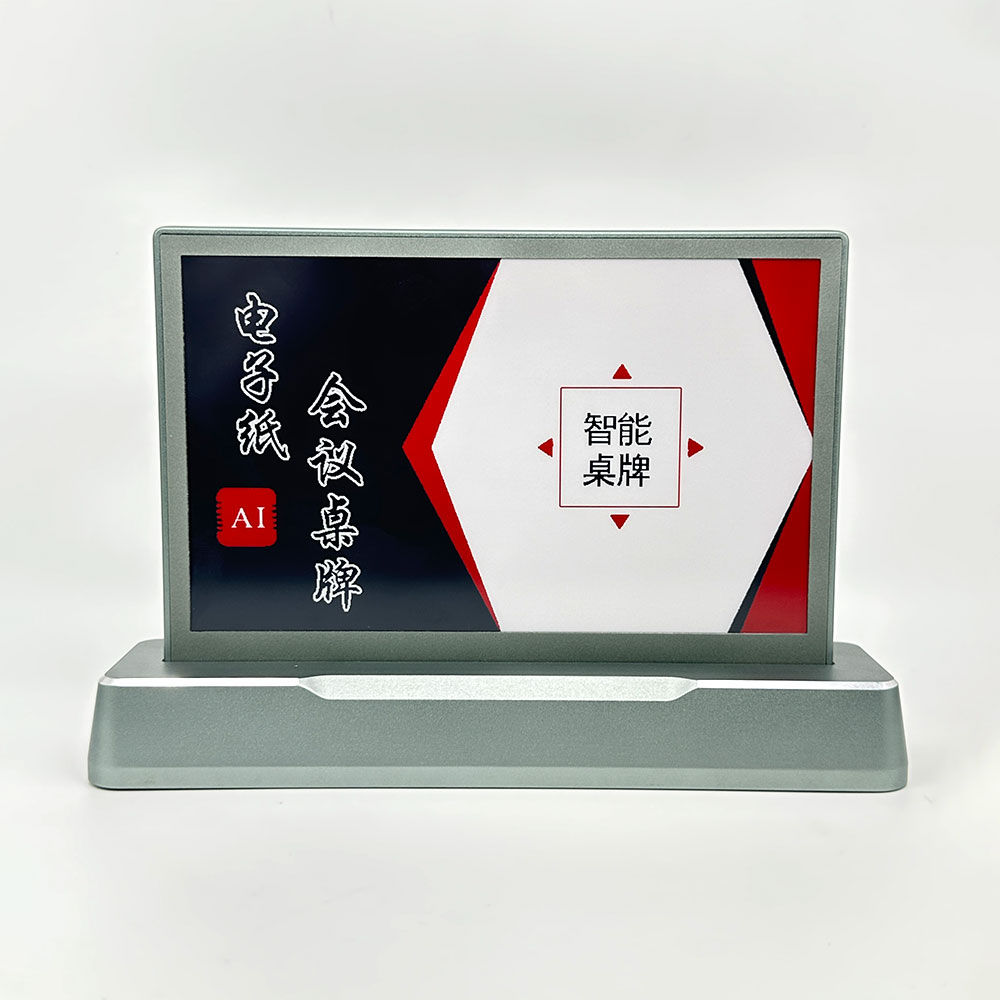

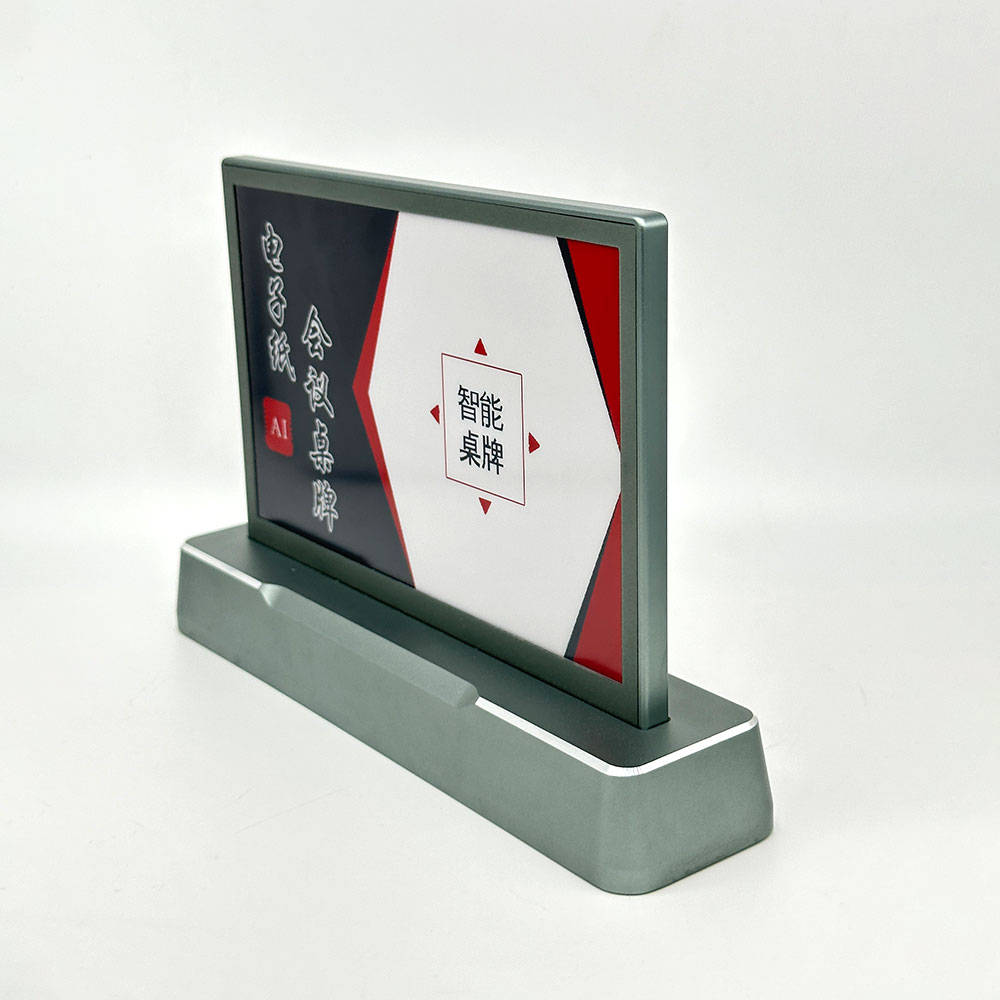

7.5 "Double sided (EPD)
Viewing area: 161.0mm ×96.0mm
Screen resolution :800*480px
DPI:125
Display color: black, white, red, 2 gray level (three colors)
Product size :210*144*8mm
Product weight :678+ 5g
Display Type: Bistable E Ink screen
Cate:Smart table
Keywords:
Screen size | 7.5 "Double-sided (EPD) |
Visual area | 161.0 mm x 96.0mm |
Screen resolution | 800*480px |
DPI | 125 |
Display color | Black, White, Red, 2 Gray scales (three colors) |
Product size | 210*144*8mm |
Product weight | 678+5 g |
Display type | Bistable e-ink screen |
Appearance color | Metallic silver gray |
direction | landscape |
Visual Angle | Nearly 180 degrees |
Operating temperature | 0℃ to 40℃ |
Storage temperature | -25℃ ~ 60℃ |

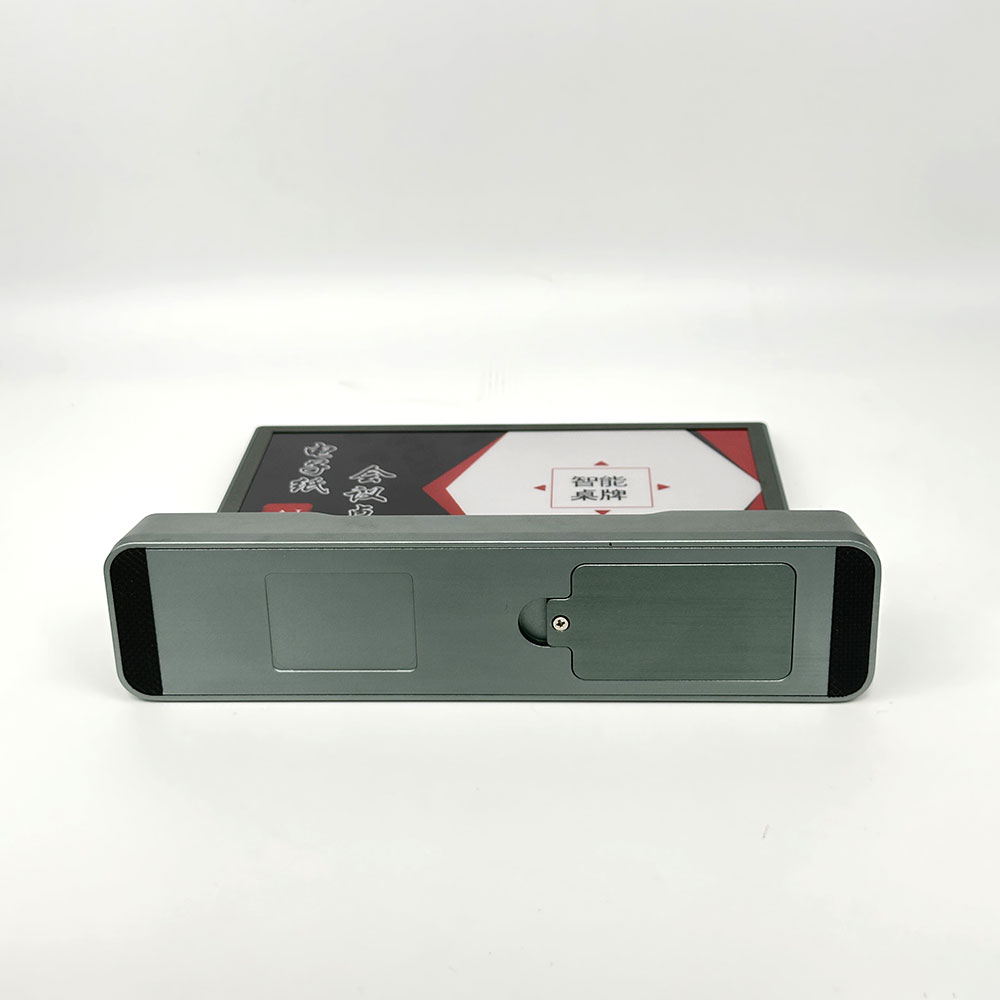

Power supply mode | Two number 5 alkaline dry batteries |
Operating voltage | 2.5V to 3.6V |
Working current | Brush current 50mA, standby current 0.2mA |
Battery life | 24 months of full charge (based on laboratory data) |
Bluetooth version | Compatible with BLE 5.0 |
NFC | ISO/IEC14443 - A |
Data rate | Supports 1Mbps and 2Mbps |
Channel spacing | 2MHz |
Radio band | 2.402 ~ 2.480 GHz |
Transmitting power | -20 to +10dBm in 3dB steps |
Receiving sensitivity | 97dBm@BLE 1Mbps data rate |
-103dBm@BLE 125Kbps data rate -90dBm | |
Communication mode 1 | Transfer the image through the NFC in the center of the display |
Communication Mode 2 | Via mobile phone Bluetooth image transfer. Transmission radius of 15 meters or more (no shielding) |
Communication Mode 3 | Computer control, via Bluetooth base station, transmission radius of more than 15 meters (no occlusion) |
Mobile phone operating system | Android (Android 7.0 or above), Apple (9.0 or above), harmonyos |
Server system | Windows 7, linux |
Cloud server | support |
Offline mobile version | Support Android phones |
System docking | Supports interconnection with third-party systems |
