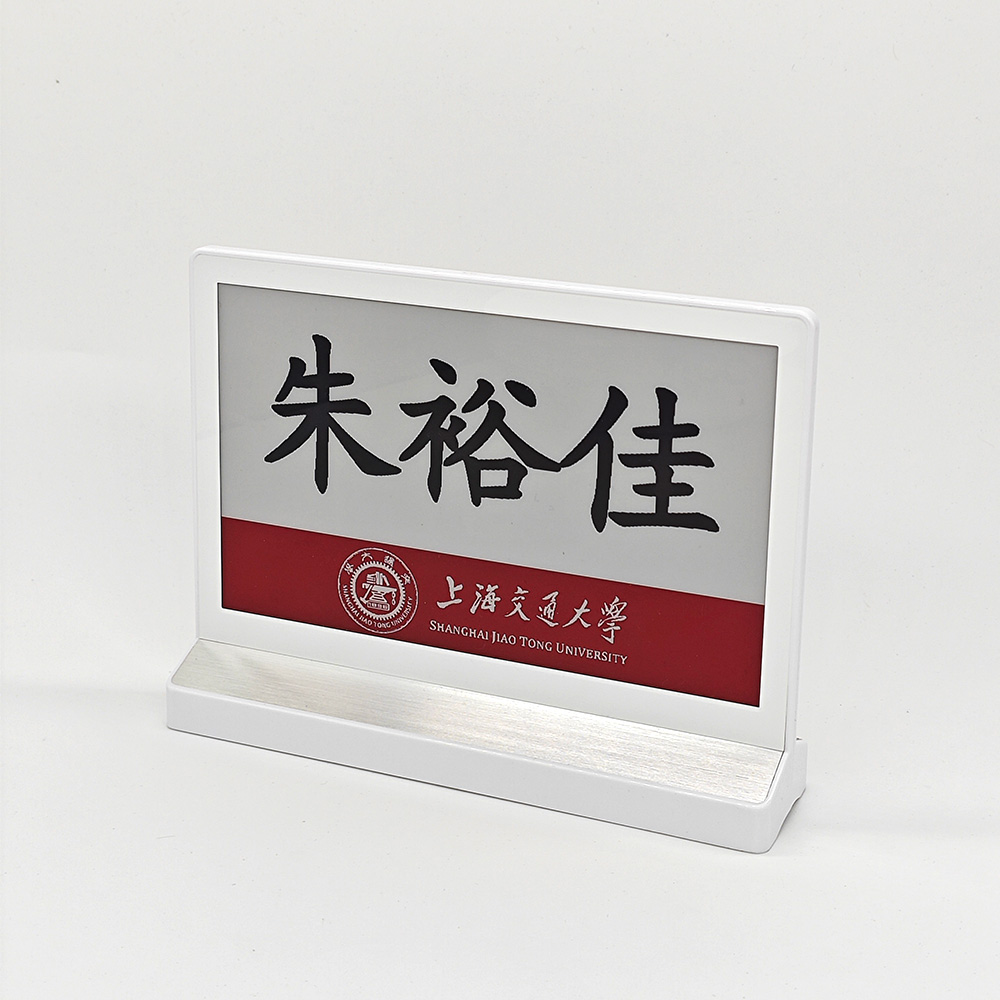

屏幕尺寸: 7.5寸双面(EPD)
可视区域: 161.0 ×96.0mm
屏幕分辨率: 800*480px
DPI: 125
显示颜色: 黑白红2灰阶 (三色)
产品尺寸: 134.0×209.2×35.2 mm;显示面厚度仅8.5mm
产品重量: 250±5 g
显示屏类型: 双稳态电子墨水屏
Cate:Smart table
Keywords:
Screen size | 7.5 "Double-sided (EPD) |
Viewing area | 161.0 ×96.0mm |
Screen resolution | 800*480px |
DPI | 125 |
Display color | Black, White, Red, 2 Gray scales (three colors) |
Product size | 134.0×209.2× 35.2mm; The display surface thickness is only 8.5mm |
Product weight | 250±5 g |
Display type | Bistable e-ink screen |

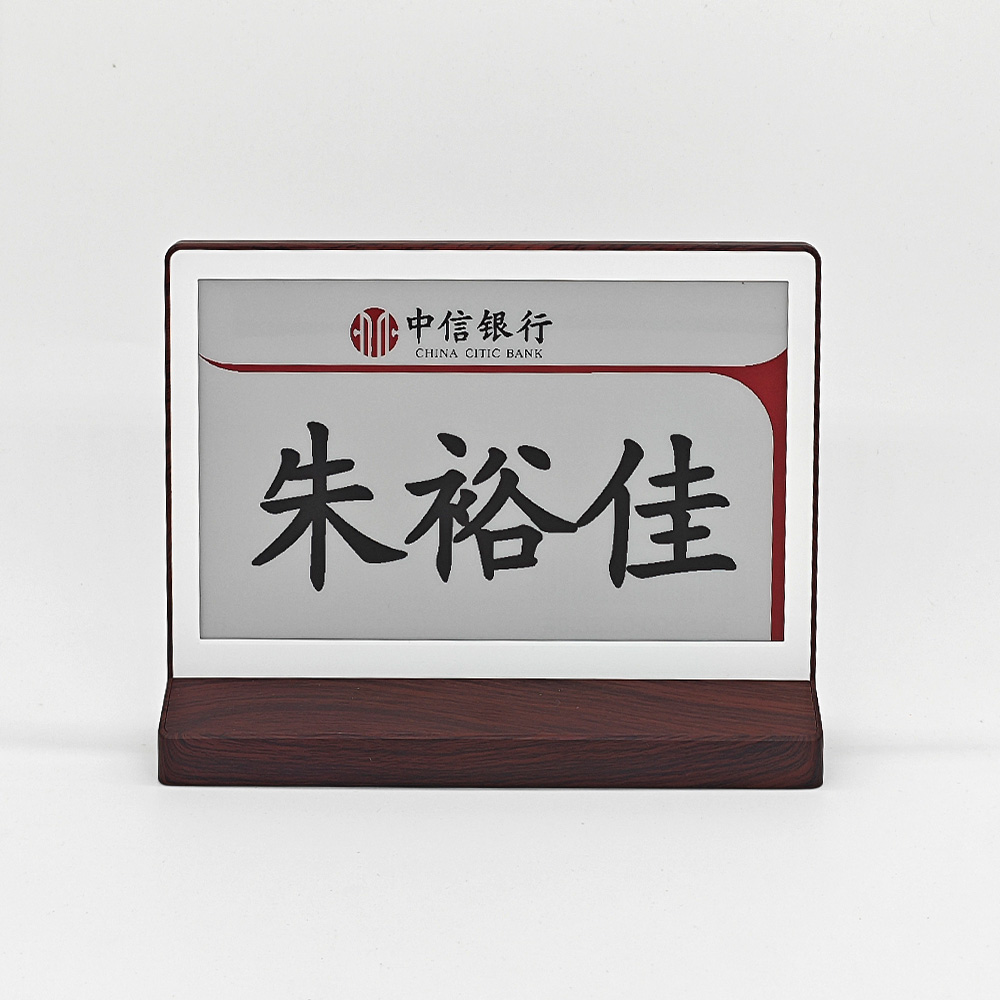

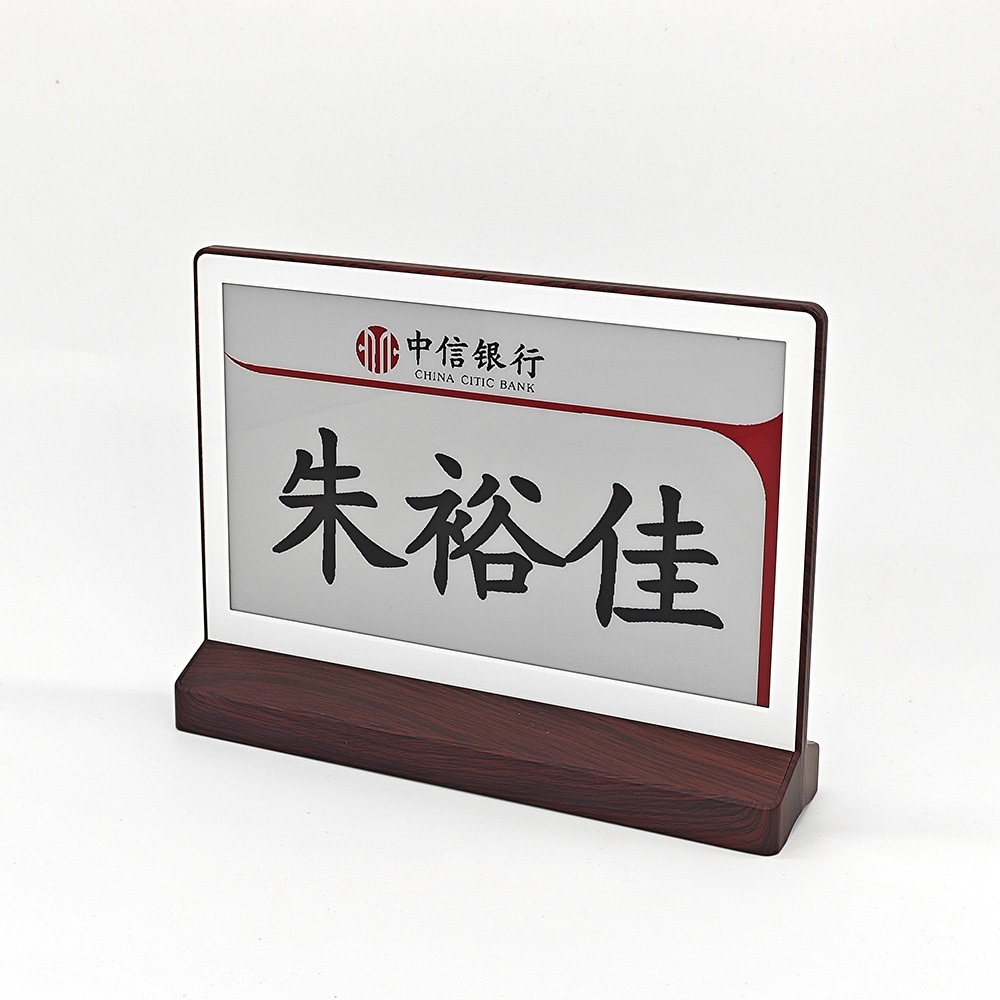

Appearance color | Wood grain/Champagne gold |
Direction | landscape |
Perspective | Nearly 180 degrees |
Operating temperature | 0℃ to 40℃ |
Storage temperature | -25℃ ~ 60℃ |
Power supply mode | Built-in 1800mAH lithium battery, micro usb charging |
Operating voltage | 2.5V to 3.6V |
Working current | Brush current 50mA, standby current 0.2mA |
Battery life | More than 12 months on a full charge (based on laboratory data) |
Bluetooth version | Compatible with BLE 5.0 |
NFC | ISO/IEC14443 - A |
Data rate | Supports 1Mbps and 2Mbps |
Channel interval | 2MHz |
Wireless frequency band | 2.402 ~ 2.480 GHz |
Transmit power | -20 to +10dBm in 3dB steps |
Receiving sensitivity | 97dBm@BLE 1Mbps data rate |
-103dBm@BLE 125Kbps data rate -90dBm | |
Communication Mode 1 | Transfer the image through the NFC in the center of the display |
Communication Mode 2 | Via mobile phone Bluetooth image transfer. Transmission radius of 15 meters or more (no shielding) |
Communication Mode 3 | Computer control, via Bluetooth base station, transmission radius of more than 15 meters (no occlusion) |
Mobile Operating system | Android (Android 7.0 or above), Apple (9.0 or above), Hongmeng |
Server system | Windows 7, linux |
