To provide customers with global, one-stop intelligent hardware solutions, mainly involving the trinity of hardware, cloud services and software development, forming a closed loop of intelligent customized services, but also according to customer needs, to provide customized services.
Committed to becoming a leading IoT intelligent connection overall solution provider, enabling customers to create more intelligent convenience for customers in more and more electronic paper use scenarios, willing to cooperate with customers at home and abroad to create efficient iot scenarios!

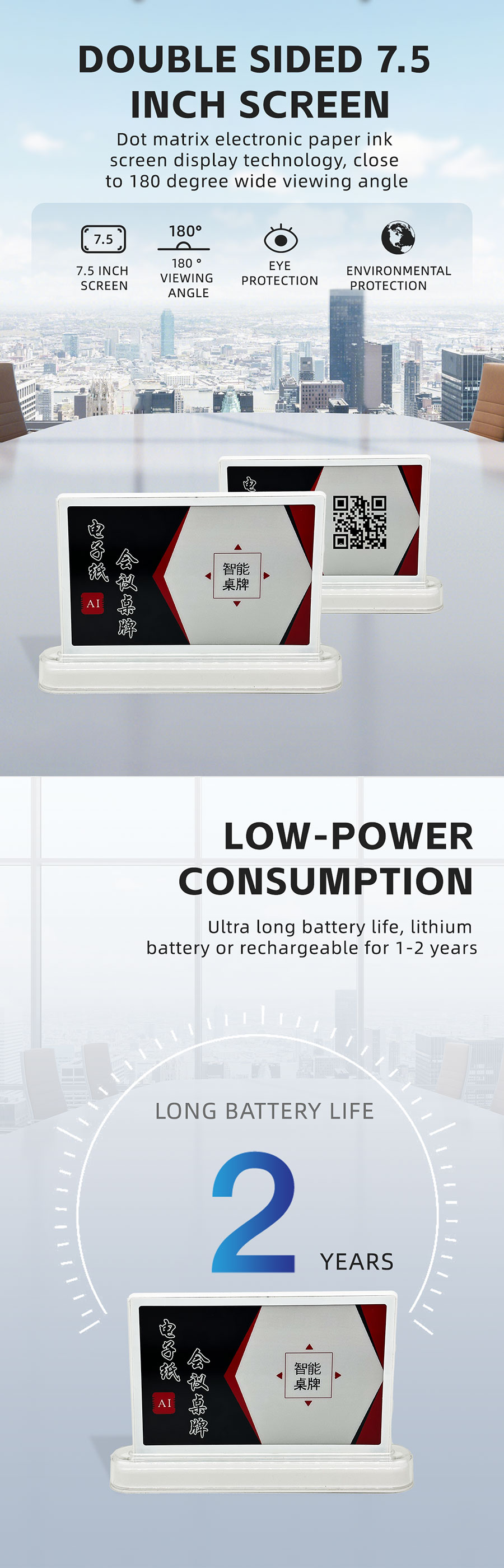

Screen Size: 7.5 "Double sided (EPD)
Viewing area: 161.0mm x96.0mm
Screen resolution: 800*480px
DPI: 125
Cate:Smart table
Keywords:
Screen size | 7.5 "Double-sided (EPD) |
Viewing area | 161.0 mm x 96.0mm |
Screen resolution | 800*480px |
DPI | 125 |
Display color | Black, White, Red, 2 Gray scales (three colors) |
Product size | 141.8×171×70 mm; |
Product weight | 258±5g g |
Display type | Bistable e-ink screen |
Appearance color | Wood grain/Champagne gold |
Direction | landscape |
Perspective | Nearly 180 degrees |
Operating temperature | 0℃ to 40℃ |
Storage temperature | -25℃ ~ 60℃ |
Power supply mode | Two number 5 alkaline dry batteries |
Operating voltage | 2.5V to 3.6V |
Working current | Brush current 50mA, standby current 0.2mA |
Battery life | 24 months of full charge (based on laboratory data) |
Bluetooth version | Compatible with BLE 5.0 |
NFC | ISO/IEC14443 - A |
Data rate | Supports 1Mbps and 2Mbps |
Channel interval | 2MHz |
Wireless frequency band | 2.402 ~ 2.480 GHz |
Transmit power | -20 to +10dBm in 3dB steps |
Receiving sensitivity | 97d |
