To provide customers with global, one-stop intelligent hardware solutions, mainly involving the trinity of hardware, cloud services and software development, forming a closed loop of intelligent customized services, but also according to customer needs, to provide customized services.
Committed to becoming a leading IoT intelligent connection overall solution provider, enabling customers to create more intelligent convenience for customers in more and more electronic paper use scenarios, willing to cooperate with customers at home and abroad to create efficient iot scenarios!

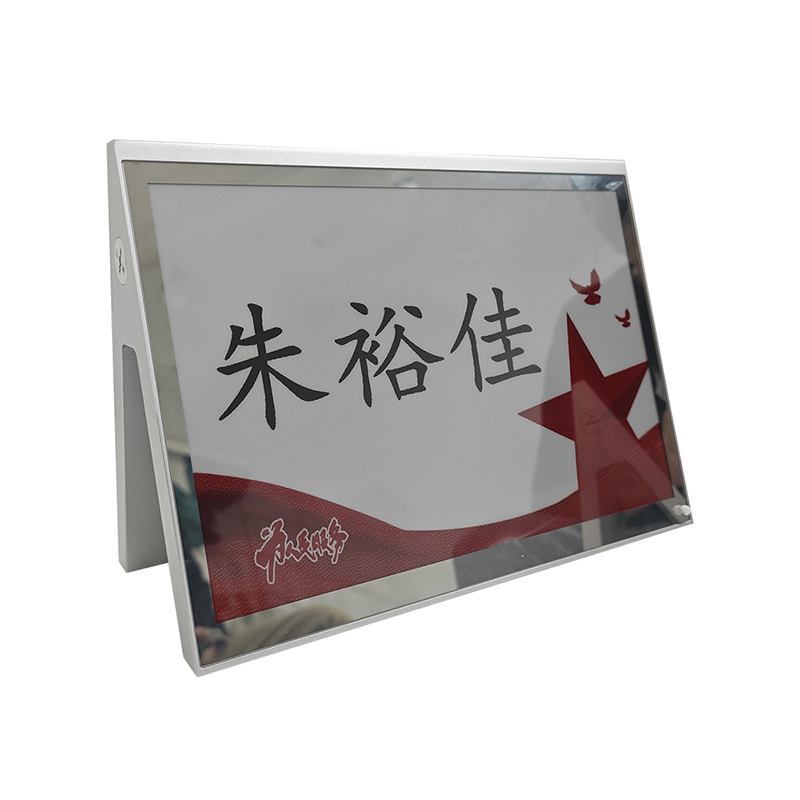

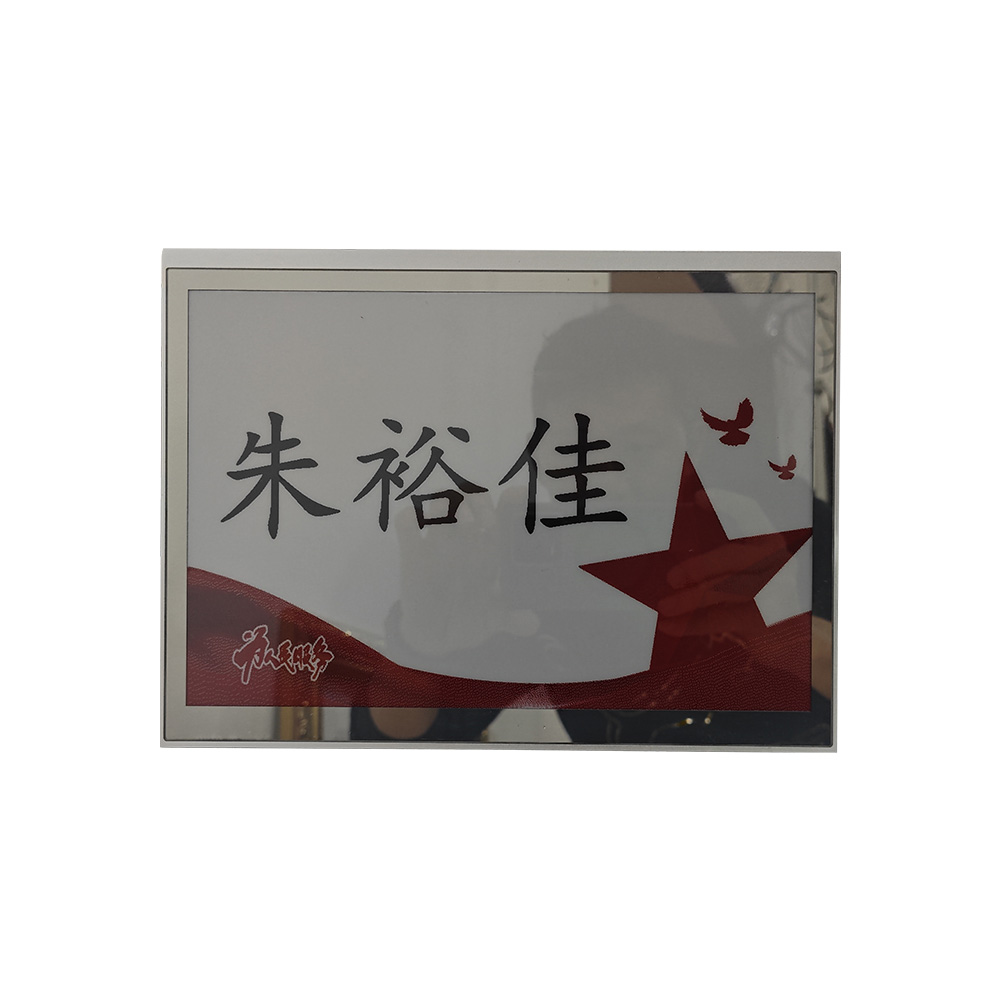

All aluminum alloy body, double-sided 10.2 inch ink screen design, tempered glass panel, anti-reflective technology processing, high-end atmosphere and high grade.
Screen: 10.2 "double-sided (EPD)
Structure: vertical double-sided horizontal screen display, base body integrated;
Resolution: 960*640px
Display color: black and white red 2 gray level (three colors)
Display type: bistable E Ink screen
Cate:Smart table
Keywords:
Product overview | All aluminum alloy body, double-sided 10.2 inch ink screen design, tempered glass panel, anti-reflective technology processing, high-end atmosphere and high grade. |
Screen | 10.2 "Double-sided (EPD) |
structure | Vertical double-sided horizontal screen display, base body one |
Resolution | 960*640px |
Display color | Black, White, Red, 2 Gray scales (three colors) |
Display type | Bistable e-ink screen |
Table material | Metal material |
Visual area | 215.52mm * 143.86mm |
direction | landscape |
Visual Angle | Nearly 180 degrees |
Product size | 232.0mm x 107.0mm x 164.0mm |
Bluetooth version | Bluetooth BT5.0/BLE |
Operating temperature | 0℃ to 50℃ |
Storage temperature | -25℃ ~ 60℃ |
Power dissipation | The average working current is 1.2ma, the average standby current is 0.04ma |
Power supply mode | Dry battery power supply |
Battery life | Refresh 4/5 times a day on average for a year |
Network protocol | TCP/IP protocol stack |
security | WEP/WPA-PSK/WPA2-PSK |
Communication mode 1 | Bluetooth +NFC communication mode (mobile phone batch or single download, single download or modification can be specified through NFC) |
Communication mode 2 | Communication mode of computer base station (independent networking of computer base station, no need for external network, batch modification operation through computer) |
Communication mode 3 | ~ |
Server system | Windows 7, linux |
Client operating system | ~ |
